USB cables look simple on the outside, but inside they are carefully engineered highways for power and data. From phone charging to printers, flash disks, cameras, and servers, USB quietly runs the modern world.
1. What is a USB cable?
USB stands for Universal Serial Bus. It was designed to:
- Standardize device connections
- Carry power + data in one cable
- Allow plug-and-play without rebooting
Unlike Ethernet, USB has a host–device relationship:
- Host: PC, laptop, router, TV
- Device: phone, flash drive, keyboard, camera

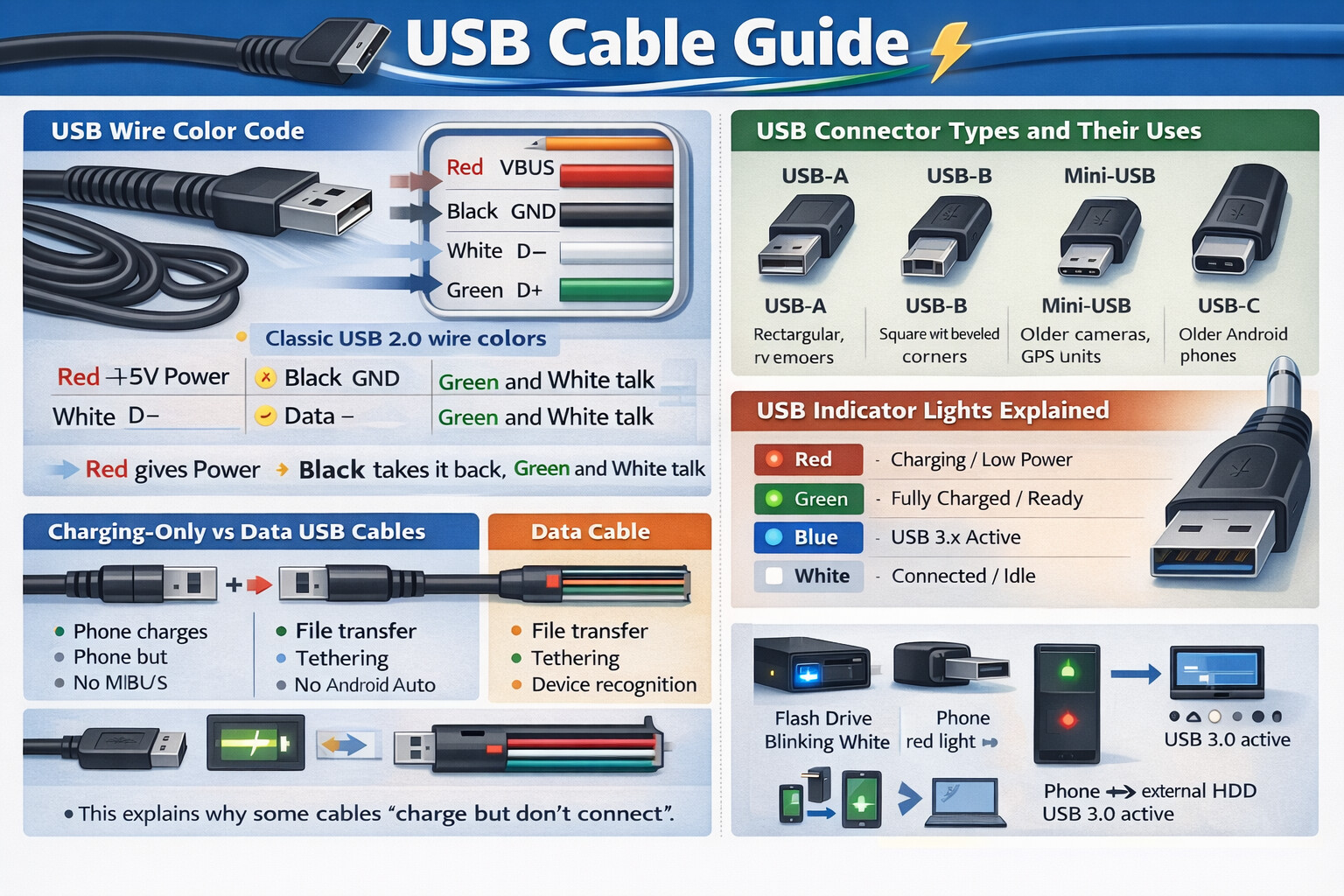

2. Standard USB wire color codes (inside the cable)
Most USB cables contain 4 main wires. Newer USB versions add more, but these four form the foundation.
Classic USB 2.0 wire colors
| Wire Color | Signal Name | Purpose |
|---|---|---|
| Red | VBUS | +5V Power |
| Black | GND | Ground |
| White | D− | Data − |
| Green | D+ | Data + |
Memory trick:
- Red gives power
- Black takes it back
- Green and White talk
What each wire does
- Red (VBUS) Supplies power (usually 5V). Used for charging and powering small devices.
- Black (Ground) Electrical reference point. No ground, no stability.
- Green & White (Data pair) Twisted together to reduce noise, just like Ethernet pairs. They carry digital signals using voltage differences.
3. USB versions and internal wire changes
As USB evolved, speeds increased dramatically.
| USB Version | Max Speed | Internal Change |
|---|---|---|
| USB 1.1 | 12 Mbps | Basic 4 wires |
| USB 2.0 | 480 Mbps | Same 4 wires |
| USB 3.0 / 3.1 | 5–10 Gbps | Extra data pairs |
| USB 3.2 | 20 Gbps | More lanes |
| USB4 | 40 Gbps | Thunderbolt-level signaling |
USB 3.x extra wires
USB 3 cables add:
- Blue, Yellow, Purple pairs (colors vary)
- Separate lanes for send and receive
- Reduced interference and higher throughput
That’s why USB 3 cables are thicker.
4. USB connector types and their uses
USB-A
- Rectangular
- Found on PCs, TVs, chargers
- Host-side connector
USB-B
- Square with beveled corners
- Printers, scanners
Mini-USB
- Older cameras, GPS units
Micro-USB
- Older Android phones
- Power banks
USB-C (the modern standard)
- Reversible
- Power + data + video
- Supports fast charging and display output
USB-C is less a plug and more a negotiation table
.
5. Charging-only vs data USB cables
Not all USB cables are equal.
Charging-only cable
- Red + Black wires only
- No Green or White
- Phone charges but:
- No file transfer
- No debugging
- No Android Auto / CarPlay
Data cable
- All four wires present
- Enables:
- File transfer
- Tethering
- Device recognition
This explains why some cables “charge but don’t connect”.
6. USB indicator lights explained
Unlike Ethernet ports, USB devices show lights on the device, not the port.
Common USB LED meanings
| Light Color | Meaning |
|---|---|
| Red | Charging / Low power |
| Green | Fully charged / Ready |
| Blue | USB 3.x active |
| White | Connected / Idle |
| Blinking | Data transfer |
Examples
- Flash drive blinking → Reading or writing data
- Phone red light → Charging
- Blue LED on external HDD → USB 3.0 high-speed mode
7. Why USB uses twisted data wires
Green and White wires are twisted because:
- They carry opposite signals
- Noise cancels itself out
- Data stays clean at high speed
This is called differential signaling, the same idea used in Ethernet and HDMI.
8. Power limits and fast charging
| USB Standard | Max Power |
|---|---|
| USB 2.0 | 2.5W |
| USB 3.0 | 4.5W |
| USB-C (PD) | Up to 240W |
USB-C cables contain smart chips (e-marker) that tell chargers:
- How much power is safe
- What speed is supported
That is why cheap USB-C cables can:
- Charge slowly
- Overheat
- Fail with laptops
9. Common USB cable problems
- Slow charging → Thin cable, poor copper
- Device disconnects → Broken data wires
- USB 3 device runs at USB 2 speed → Wrong cable
- No file transfer → Charge-only cable
Cables fail quietly, like tired messengers
.
10. USB vs Ethernet (quick contrast)
| Feature | USB | Ethernet |
|---|---|---|
| Power delivery | Yes | Via PoE |
| Host-device | Yes | No |
| Max distance | ~5 m | 100 m |
| Speed indicator lights | On device | On port |
| Networking | Limited | Native |
Final takeaway
- USB color codes define power and data roles
- Green & White carry data
- Red & Black carry power
- USB-C adds intelligence, speed, and power
- LEDs tell you charging, speed, and activity status
