Fixing Moodle SMTP Email on Webuzo: A Complete Troubleshooting Guide

[kevin (KEVIN OWINO)]

Environment: Moodle LMS on Webuzo | Exim 4.98 | PHP CLI | Ubuntu Server
Symptoms: Moodle UI reports “Your site couldn’t communicate with your mail server” yet the website is fully accessible.

---

The Problem

When running Moodle on a shared or VPS hosting environment like Webuzo, SMTP email often works via browser but fails when triggered through the admin UI or CLI. This guide walks through the exact steps used to diagnose and fix the issue.

---

Step 1: Set Up the Moodle CLI Cron (Prerequisite)

Before troubleshooting mail, ensure your Moodle cron is running correctly via CLI — not just the web-based cron.

Add the cron job in Webuzo under your system user:

Field	Value
Minute	*
Hour	*
Day	*
Month	*
Weekday	*
Command	/usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cron.php >/dev/null 2>&1

Replace cpaneluser with your actual Webuzo username and lms.example.com with your Moodle directory.

Verify it works:

sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cron.php

Expected output:

Server Time: Mon, 20 Apr 2026 22:45:07 +0300
Ran 0 adhoc tasks found at Mon, 20 Apr 2026 22:45:07 +0300
Cron run completed correctly

Note: Moodle’s cron runs continuously for 180 seconds polling for tasks — this is normal behaviour.

---

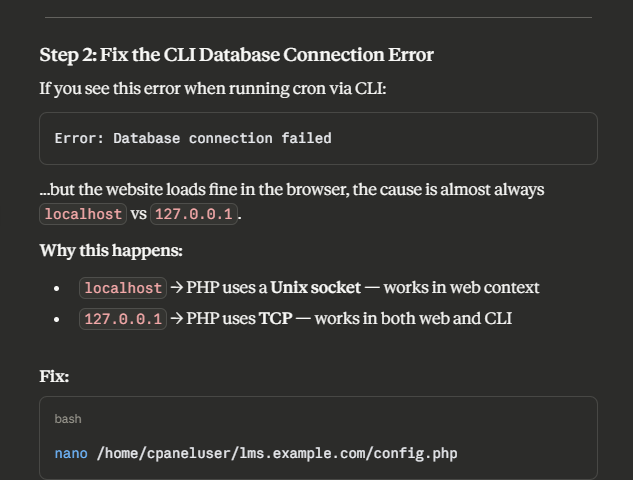

Step 2: Fix the CLI Database Connection Error

If you see this error when running cron via CLI:

Error: Database connection failed

…but the website loads fine in the browser, the cause is almost always localhost vs 127.0.0.1.

Why this happens:

• localhost → PHP uses a Unix socket — works in web context
• 127.0.0.1 → PHP uses TCP — works in both web and CLI

Fix:

nano /home/cpaneluser/lms.example.com/config.php

Change:

$CFG->dbhost = 'localhost';

To:

$CFG->dbhost = '127.0.0.1';

Or use sed:

sed -i "s/\$CFG->dbhost\s*=\s*'localhost'/\$CFG->dbhost = '127.0.0.1'/" /home/cpaneluser/lms.example.com/config.php

---

Step 3: Configure SMTP via CLI

Set all SMTP settings using Moodle’s config CLI tool:

sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtphosts --set=mail.example.com
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpport --set=587
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpsecure --set=tls
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpauthtype --set=LOGIN
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpuser --set=noreply@example.com
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtppass --set=YourSMTPPassword
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=noreplyaddress --set=noreply@example.com

Common port/security combinations:

Port	Security	smtpsecure value
465	SSL	ssl
587	TLS/STARTTLS	tls
25	None	(empty)

---

Step 4: Identify the Correct SMTP Hostname

Don’t assume your mail hostname — test all possibilities. Replace the hostnames below with your own:

cat > /tmp/testports.php << 'EOF'
<?php
$hosts = ['mail.example.com', 'webmail.example.com', 'smtp.example.com'];
$ports = [465, 587, 25];

foreach ($hosts as $host) {
    foreach ($ports as $port) {
        $prefix = $port == 465 ? 'ssl://' : '';
        $conn = @stream_socket_client($prefix.$host.':'.$port, $errno, $errstr, 5);
        $status = $conn ? '✅ OPEN' : '❌ FAILED ('.$errstr.')';
        echo "$host:$port => $status\n";
        if ($conn) fclose($conn);
    }
}
EOF
php /tmp/testports.php

Sample output:

mail.example.com:465    => ✅ OPEN
mail.example.com:587    => ✅ OPEN
mail.example.com:25     => ✅ OPEN
webmail.example.com:465 => ❌ FAILED
webmail.example.com:587 => ✅ OPEN

Use the hostname with the most open ports and a valid SSL cert. Port 587 with TLS is the recommended choice.

Also check your MX record:

dig MX example.com +short

Tip: The SSL certificate CN must match the hostname you use in Moodle’s SMTP config, otherwise the TLS handshake will fail even if the port is open.

---

Step 5: Test Raw SMTP Authentication

Before blaming Moodle, verify credentials work at the raw SMTP level:

cat > /tmp/testsmtp.php << 'EOF'
<?php
$host = 'mail.example.com';
$port = 587;
$user = 'noreply@example.com';
$pass = 'YourSMTPPassword';

$conn = stream_socket_client('tcp://'.$host.':'.$port, $errno, $errstr, 10);
if (!$conn) { die('Connection failed: '.$errstr."\n"); }

function read($conn) {
    $out = '';
    while ($line = fgets($conn)) {
        $out .= $line;
        if (preg_match('/^\d{3} /', $line)) break;
    }
    return $out;
}

echo "S: ".read($conn);
fputs($conn, "EHLO mail.example.com\r\n");         echo "EHLO: ".read($conn);
fputs($conn, "STARTTLS\r\n");                       echo "STARTTLS: ".read($conn);
stream_socket_enable_crypto($conn, true, STREAM_CRYPTO_METHOD_TLS_CLIENT);
fputs($conn, "EHLO mail.example.com\r\n");          echo "EHLO2: ".read($conn);
fputs($conn, "AUTH LOGIN\r\n");                     echo "AUTH: ".read($conn);
fputs($conn, base64_encode($user)."\r\n");          echo "USER: ".read($conn);
fputs($conn, base64_encode($pass)."\r\n");          echo "PASS: ".read($conn);
fclose($conn);
EOF
php /tmp/testsmtp.php

Look for the PASS: line response:

Response	Meaning
235 Authentication succeeded	Credentials correct
535 Incorrect authentication	Wrong password
534	2FA / App password required

Tip: Always save scripts to a file rather than running inline — bash interprets ! in passwords as history expansion and throws bash: event not found.

---

Step 6: Test with Moodle’s Own PHPMailer

Once raw SMTP works, test using Moodle’s bundled PHPMailer library:

cat > /tmp/testmoodle_smtp.php << 'EOF'
<?php
define('CLI_SCRIPT', true);
require '/home/cpaneluser/lms.example.com/config.php';
require '/home/cpaneluser/lms.example.com/lib/phpmailer/src/PHPMailer.php';
require '/home/cpaneluser/lms.example.com/lib/phpmailer/src/SMTP.php';
require '/home/cpaneluser/lms.example.com/lib/phpmailer/src/Exception.php';

use PHPMailer\PHPMailer\PHPMailer;
use PHPMailer\PHPMailer\SMTP;

$mail = new PHPMailer(true);
$mail->SMTPDebug  = SMTP::DEBUG_SERVER;
$mail->isSMTP();
$mail->Host       = 'mail.example.com';
$mail->SMTPAuth   = true;
$mail->Username   = 'noreply@example.com';
$mail->Password   = 'YourSMTPPassword';
$mail->SMTPSecure = PHPMailer::ENCRYPTION_STARTTLS;
$mail->Port       = 587;

$mail->setFrom('noreply@example.com', 'Moodle LMS');
$mail->addAddress('admin@example.com');
$mail->Subject = 'Moodle SMTP Test';
$mail->Body    = 'Test email from Moodle CLI';

try {
    $mail->send();
    echo "Email sent successfully!\n";
} catch (Exception $e) {
    echo "Error: {$mail->ErrorInfo}\n";
}
EOF
sudo -u cpaneluser /usr/bin/php /tmp/testmoodle_smtp.php

A successful run looks like:

...
SERVER -> CLIENT: 235 Authentication succeeded
...
SERVER -> CLIENT: 250 OK id=xxxxxxxxxxxxxxxxxxxx
Email sent successfully!

---

Step 7: Test Using Moodle’s Core email_to_user()

This is the exact function the Moodle admin UI test uses. If this works, the UI test will work:

cat > /tmp/testmoodle_debug.php << 'EOF'
<?php
define('CLI_SCRIPT', true);
require '/home/cpaneluser/lms.example.com/config.php';

$CFG->debugsmtp    = true;
$CFG->debug        = 32767;
$CFG->debugdisplay = 1;

$user            = core_user::get_support_user();
$user->email     = 'admin@example.com';
$user->firstname = 'Admin';
$user->lastname  = 'User';

$result = email_to_user(
    $user, $user,
    'Test from Moodle Debug',
    'This is a debug test'
);

echo $result ? "SUCCESS\n" : "FAILED\n";
EOF
sudo -u cpaneluser /usr/bin/php /tmp/testmoodle_debug.php 2>&1

---

Step 8: Purge Caches and Final Verification

After all settings are confirmed, purge Moodle’s cache:

sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/purge_caches.php

Verify all settings are saved correctly:

sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtphosts
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpport
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpsecure
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpauthtype
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=smtpuser
sudo -u cpaneluser /usr/bin/php /home/cpaneluser/lms.example.com/admin/cli/cfg.php --name=noreplyaddress

Expected output:

mail.example.com
587
tls
LOGIN
noreply@example.com
noreply@example.com

---

Final Working Configuration

Setting	Value
SMTP Host	mail.example.com
SMTP Port	587
Security	TLS
Auth Type	LOGIN
Username	noreply@example.com
No-reply Address	noreply@example.com

---

Troubleshooting Quick Reference

Symptom	Cause	Fix
CLI cron: DB connection failed	localhost uses Unix socket, not TCP	Change dbhost to 127.0.0.1 in config.php
SMTP port scan all FAILED	Firewall blocking outbound mail ports	Open ports 25, 587, 465 in server firewall
235 but Moodle UI still fails	Stale cache	Run purge_caches.php
535 Incorrect authentication	Wrong password	Reset email account password
bash: event not found	! in password breaks bash inline scripts	Always write PHP test scripts to a file
send_test_email.php not found	Older Moodle version	Use email_to_user() method instead
SSL cert mismatch	Hostname doesn’t match certificate CN	Use the hostname that matches the SSL cert

---

Guide based on a real troubleshooting session on Moodle 4.x running on Webuzo with Exim 4.98.2 and PHP 8.x.
